Underground Cable Tester Locator, Metal Pipe Detector, Wire Tracker Tool, Wall and Underground Wires Cables Water and Gas Pipeline Detector, Short Circuit Breaker Tester

Highlights

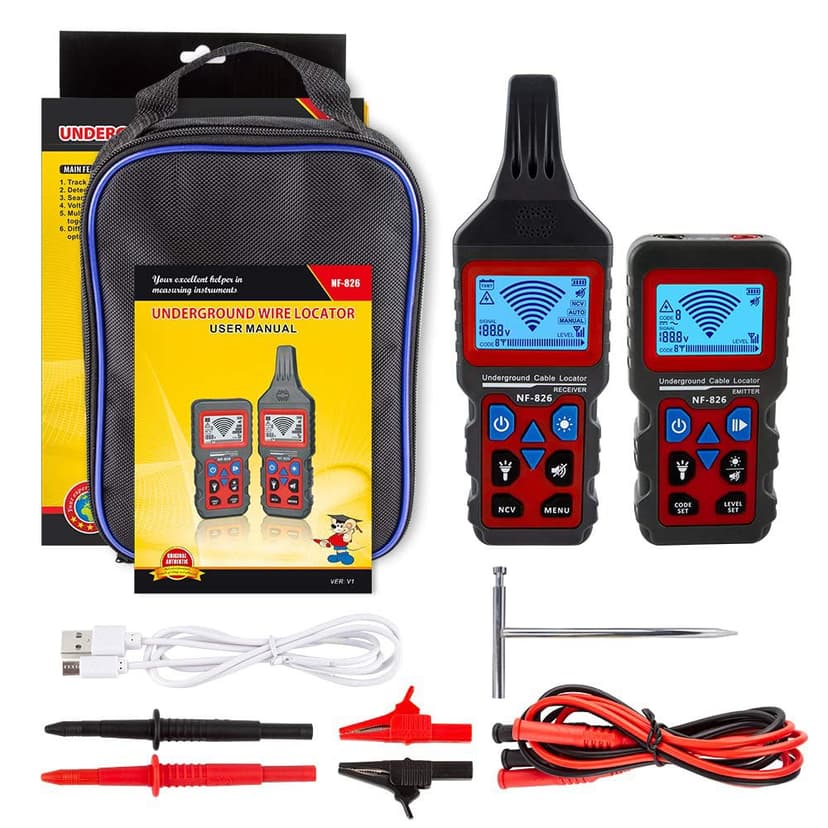

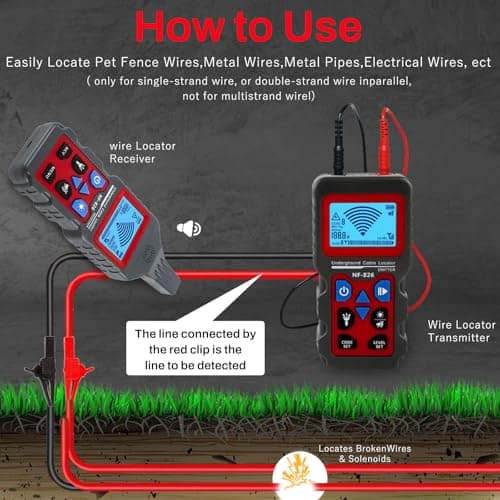

• 1.NF-826 Underground & In-Wall Wire Locator is a portable instrument,which consists of transmitter, receiver and accessories. Selecting new integrated devices and digital circuit technology, the electrical performance is stable and reliable. According to the change of the signal, the specific location and fault of the buried cable or pipeline can be detected.

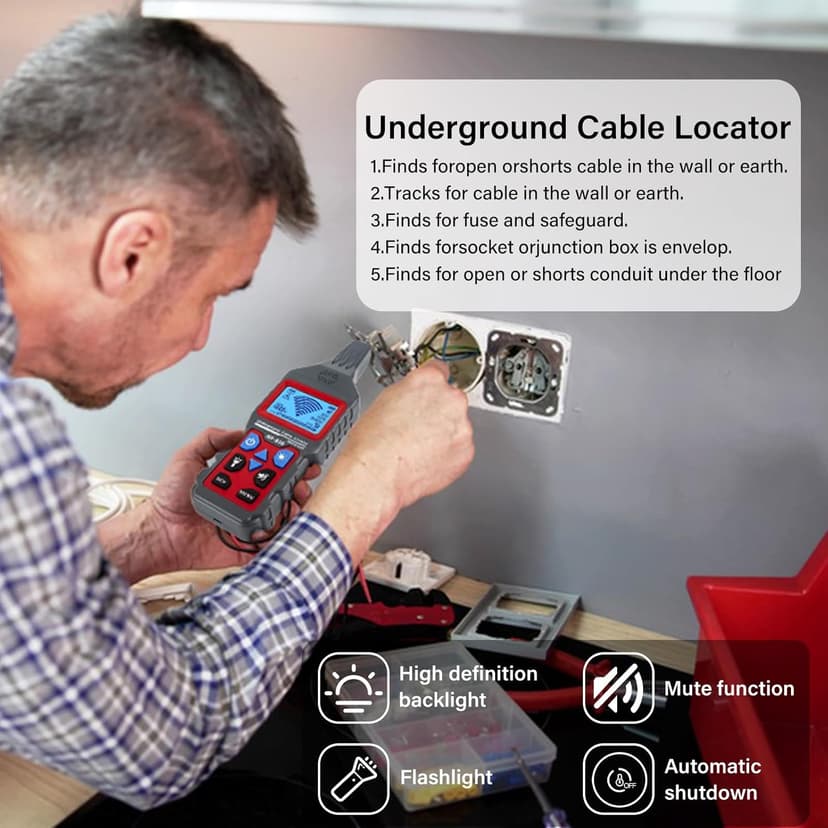

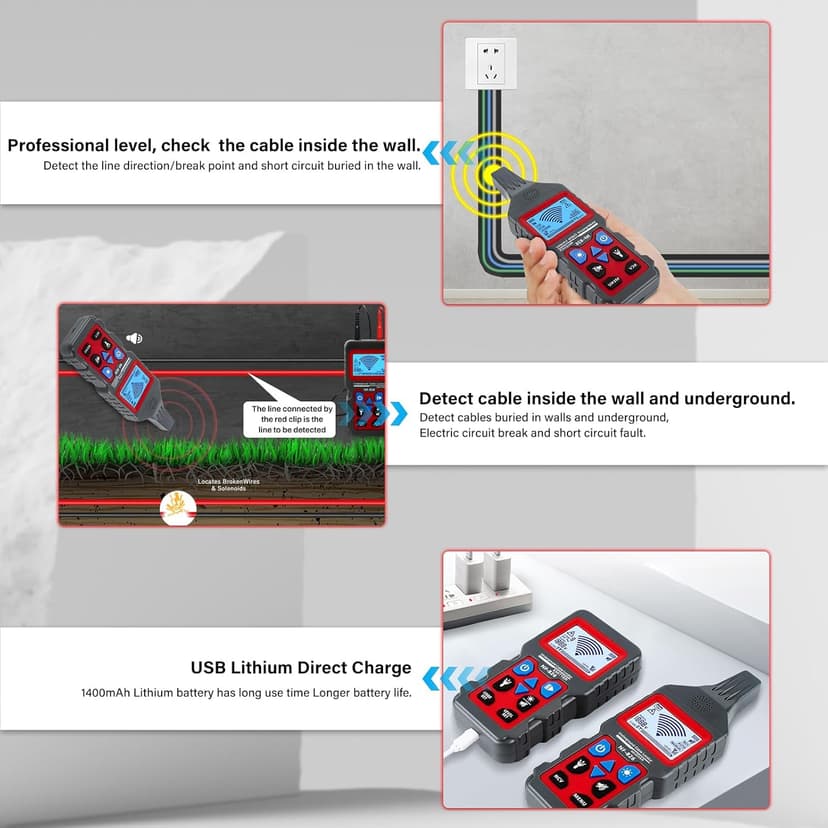

• 2.It Can Detecting cables, electrical lines, water/gas supply pipelines buried in wall or earth; interruptions and short circuit in cables and electrical lines buried in wall. Detecting fuses and assigning current circuits;Detecting interruptions and short-circuits in floor heating

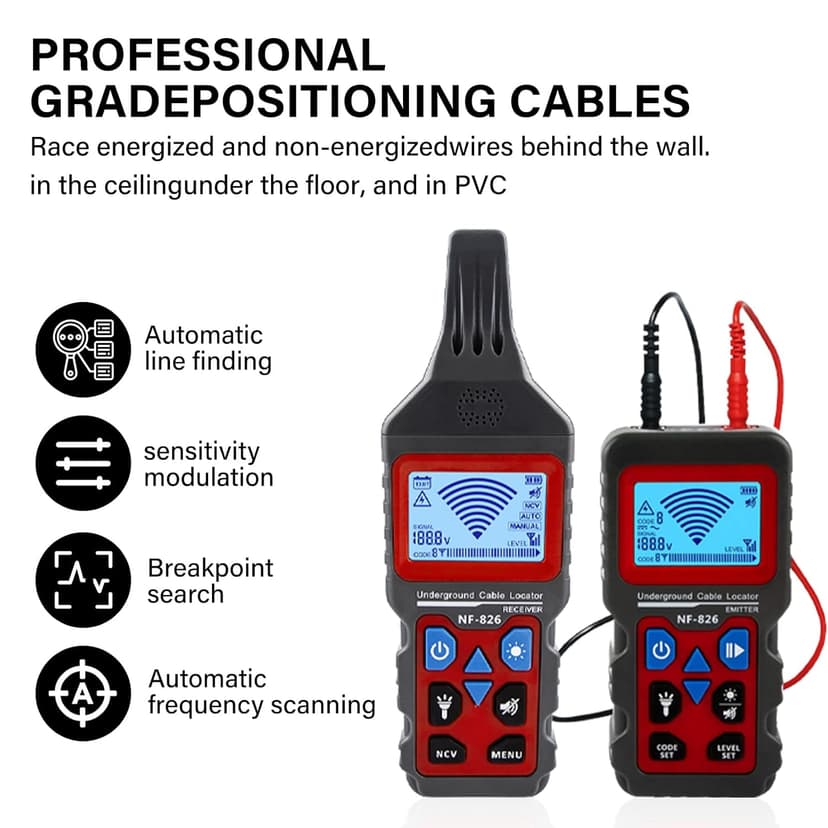

• 3.The sensitivity of the receiver can be adjusted either manually or automatically. can sweep frequency automatically. Both the transmitter and the receiver can work under mute mode. Additional transmitters are available to extende or distinguish multiple signals. it can automatically turn off the power after 10 minutes,If you forget to turn off the power when you are not using it. Compactness-durability and portability.

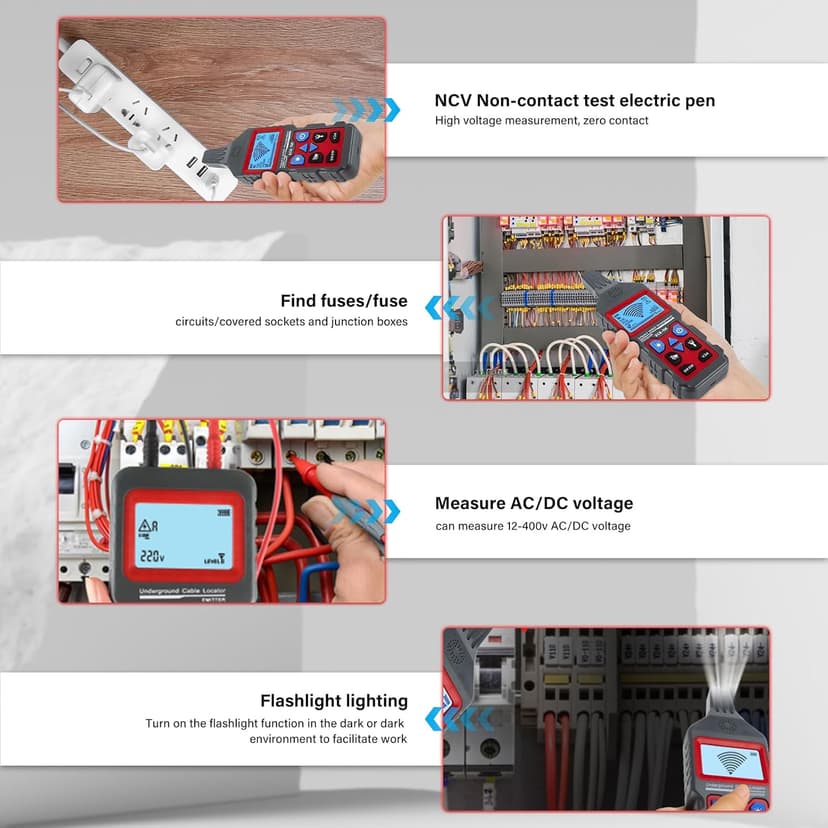

• 4.The transmitter is integrated with the function of AC/DC voltmeter, which can measure : 12 to 400V AC/DC voltage on a linear basis: AC: 12 ~ 400V (50 to 60 Hz) ± 2.5%. DC: 12～400V ±2.5%
• 5. Applications: Installation and maintenance of weak current system, communication line, comprehensive wiring circuit, telephone system, computer network, other metal wire circuit etc.
