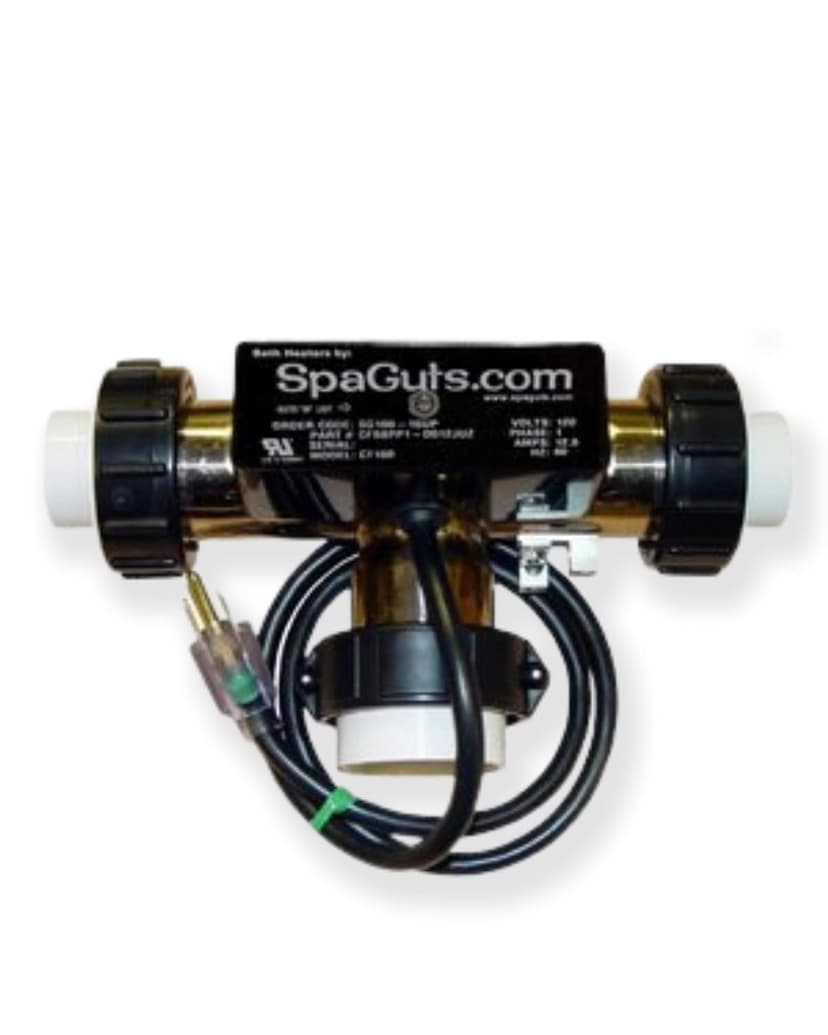

Spaguts 25-150-0003 T-Style Universal Bath Heater Kit, 1.5KW 110V, 7x1.5 inches, with Built-in Pressure Switch

Description

SpaGuts brand T-Style bathtub heater, 1.5KW 110V. This is the 7.0 x 1.5 inch T-Style bathtub heater, which are universal and designed to be installed on the pressure side of the bathtub pump. This bath heater is normally meant for use on 1.5 inch plumbing, but can also be used on 1.0 inch and 0.75 inch plumbing when using the fittings that are provided. Inside diameter is approximately 2.375 inch for the black heater split nuts. NOTE 1: If this bath heater is being installed directly on top of the pump discharge, make sure the outside thread diameter of the pump is approximately 2-3/8 inch (2.375 inch). The split nuts on this bath heater has an inside thread diameter of approximately 2-3/8 inch (2.375 inch), which is standard for 1.5 inch fittings. If the existing pump have different size threaded fittings, replumbing is required for any of our Bath Heaters.Replacement option for the following bath heaters: SG100-15UP, PH100-15UP, 46-355-1033, 46-355-1030 or PH100-A (1.0KW), 2-00-7514, CT100-BLP-ET, CT100, CFB8PP1-D012JUZ, 931211-20, 931211+20, 25-175-1211, GG931211+20, 12-784-7430, 2-00-5009, 935211-21, 2-00-0027, D1150-1302-G, Kholer 1219652, Hydroquip CFB8PP8-8001AU0 (1.0KW).Replacement option for the following brand bath heaters: American Standard, Safe-T-Heater, Hydro-Quip Compact Series Whirlpool Bath Heater, Jacuzzi RapidHeat, Pure Heat. The use of a SpaGuts brand bath heater helps to eliminate the rapid cooling that occurs during the operation of your whirlpool bath, providing you a continuous source of hot water and extending the pleasure of your jetted bath experience. This bath heater is normally for use in jetted bathtubs up to 70 gallons. For more information, please see Installation Instructions in the installation tab above. NOTE: This bath heater is designed to maintain the current bath water temperature in the tub, and is not meant to heat water from cold to hot.
