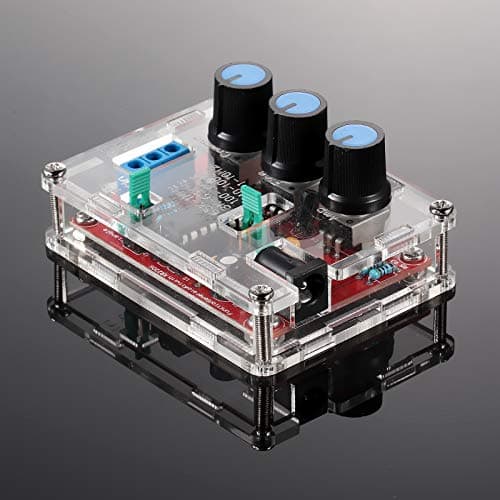

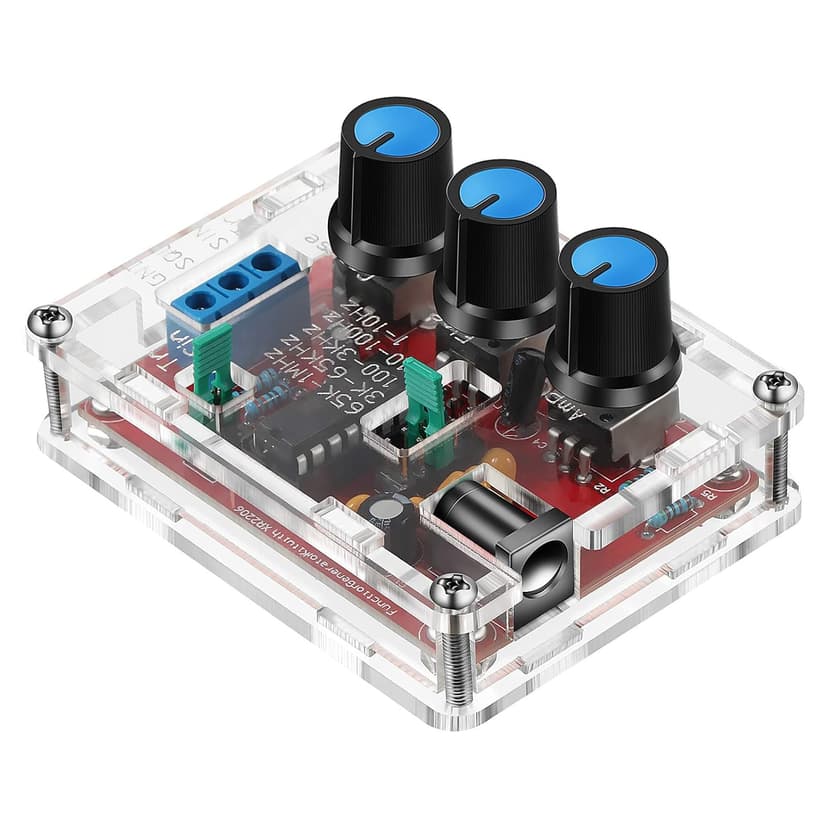

Signal Generator Kit, XR2206 Precise Function Signal Generator Frequency Module DIY Kit Sine Triangle Square Output Adjustable 1Hz-1MHz, 9-12V Direct Current Input(1 Piece)
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate I earn from qualifying purchases. Learn more ›
Don't have Amazon Prime? Students can get a free 6-Month Amazon Prime trial with free 2-day shipping, unlimited video streaming & more.
If you're not a student, there's also a free 1-Month Amazon Prime trial available.
Signal Generator Kit, XR2206 Precise Function Signal Generator Frequency Module DIY Kit Sine Triangle Square Output Adjustable 1Hz-1MHz, 9-12V Direct Current Input(1 Piece)
403 ratings
Highlights

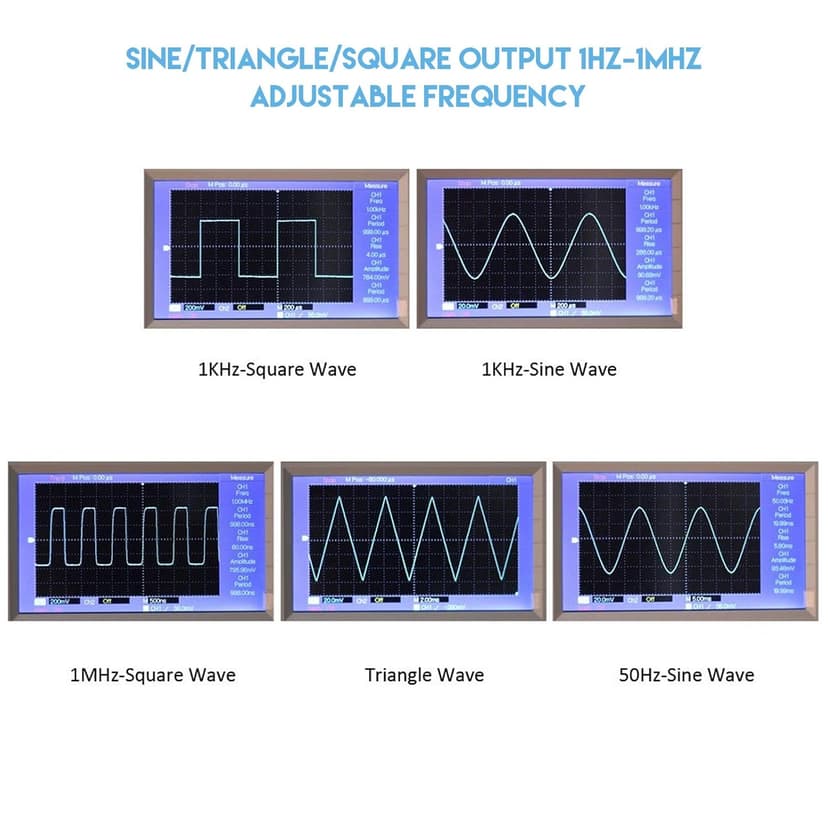

- Good precision: the XR2206 function signal generator is precise, with a transparent case box shell for good assemble; Amplitude: 0-3V at 9V DC input; Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kHz
- Parameters: Voltage Supply: 9-12V DC Input; Waveforms: Square, Sine, Triangle; Impedance: 600 Ohm + 10%; Frequency: 1Hz-1MHz; Amplitude: 0-3V at 9V DC; InputDistortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kaHz
- Sine wave parameters:Amplitude: 0-3V at 9V DC input; Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kHz
- Square wave parameters: Amplitude: 8V (no load) at 9V DC Input; Rise Time: less than 50ns (at 1KHz); Fall Time: less than 30ns (at 1KHz); Symmetry: less than 5% (at 1KHz)
- Triangle wave: Amplitude: 0-3V at 9V DC input; Linearity: less than 1% (up to 100 KHz) 10 mA
Description

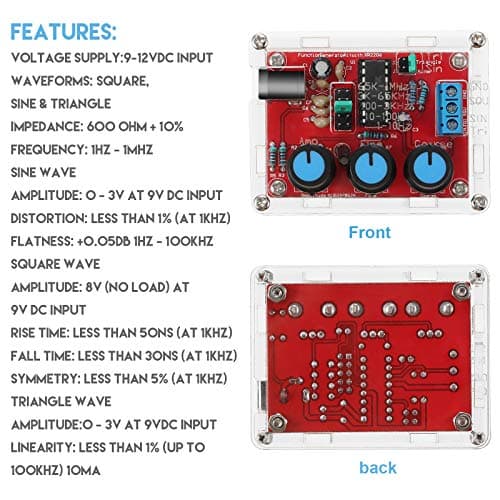

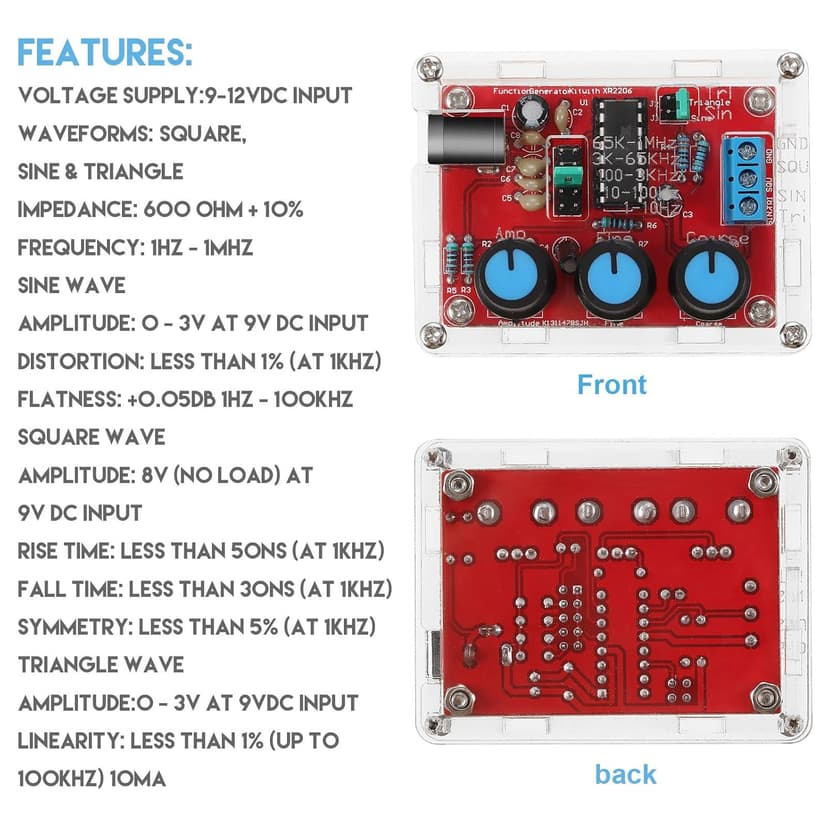

FEATURES: VOLTAGE SUPPLY:9-12VDC INPUT WAVEFORMS: SQUARE,SINE & TRIANGLE IMPEDANCE: 600 OHM+10% FREQUENCY: 1HZ-IMHZ SINE WAVE AMPLITUDE:O-3V AT 9V DC INPUT DISTORTION: LESS THAN 1% (AT IKHZ) FLATNESS:+O.O5DB IHZ-10OKHZ SQUARE WAVE AMPLITUDE: 8V (NO LOAD) AT9V DC INPUT RISE TIME: LESS THAN 5ONS (AT IKHZ) FALL TIME: LESS THAN 3ONS (AT IKHZ) SYMMETRY: LESS THAN 5% (AT IKHZ TRIANGLE WAVE AMPLITUDE:O-3V AT 9VDC INPUT LINEARITY: LESS THAN 1% (UP TO10OΚΗΖ) 10MA

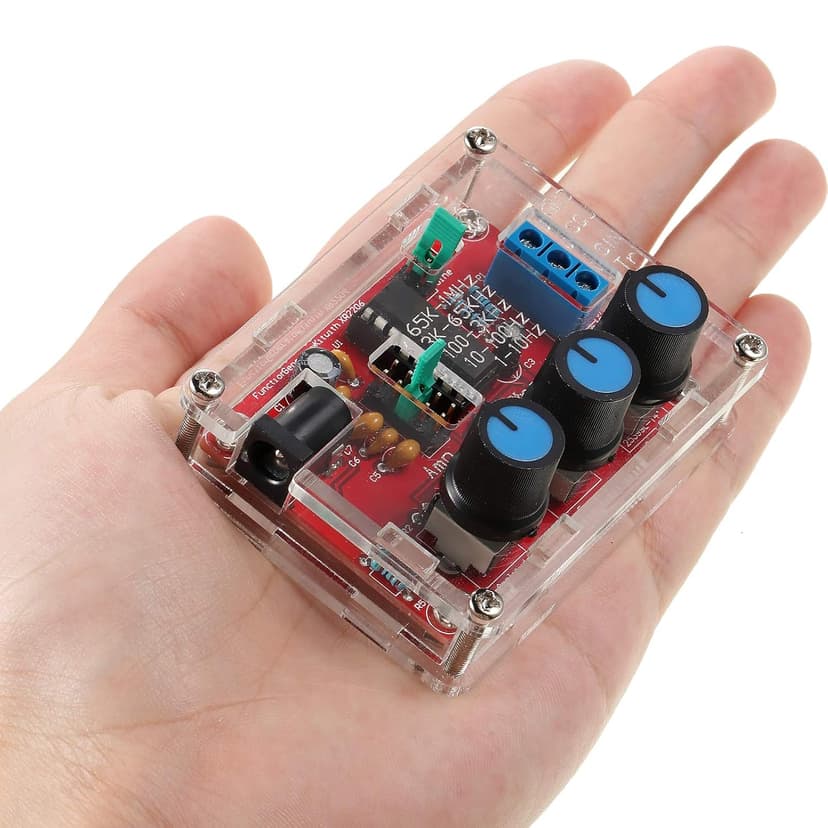

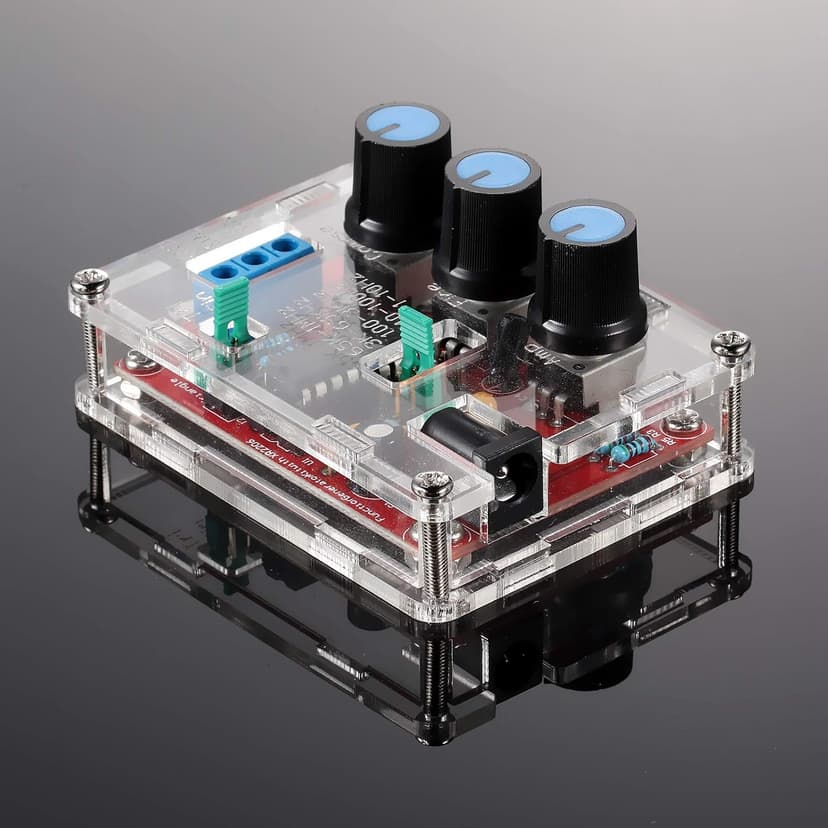

Photos
Product specs
| Specification | Details |
|---|---|
| Package Dimensions | 5.71 x 4.8 x 0.59 inches; 2.47 ounces |
| Item model number | Weewooday_XR2206 |
| Date First Available | October 19, 2020 |
| Manufacturer | Weewooday |
| ASIN | B08SMB6DRM |
| Country of Origin | China |
| Brand | Weewooday |
| Recommended Uses For Product | Educational, Hobbyist |
| Voltage | 3 Volts, 12 Volts |
| Special Feature | Portable |

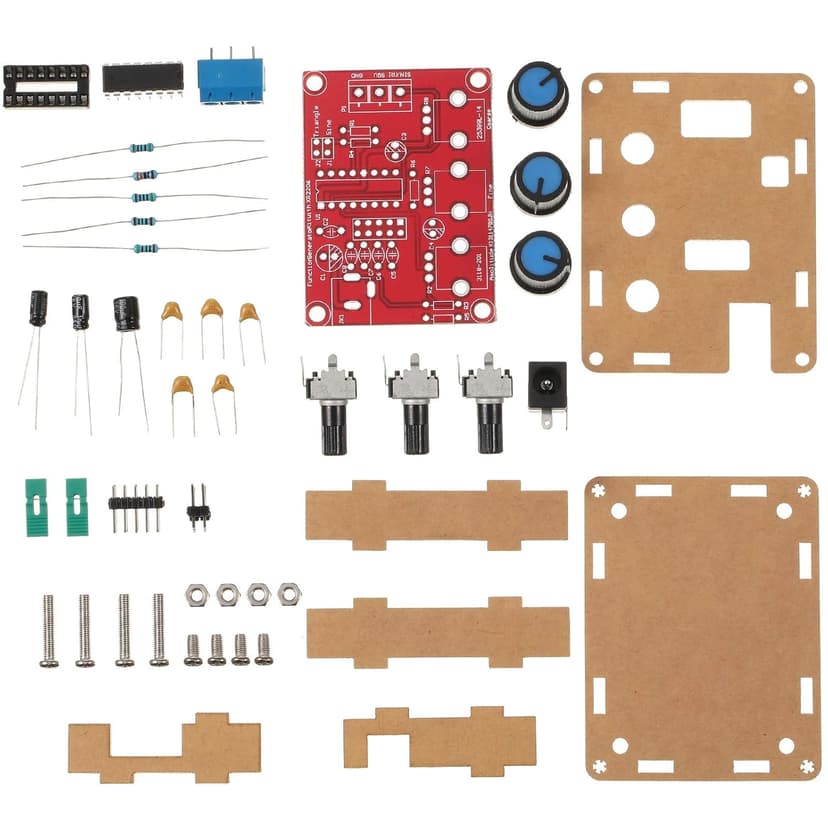

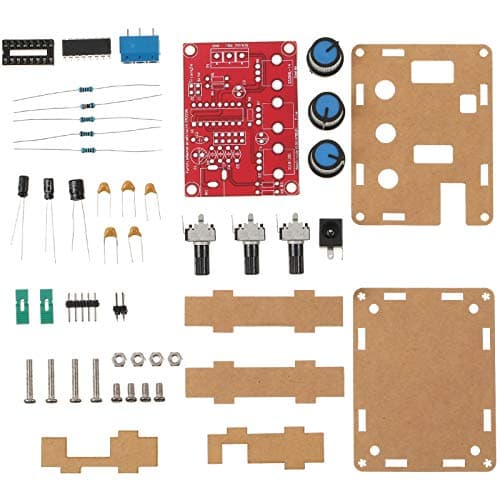

| Included Components | Signal generator DIY kit |
| Color | Clear |
| Product Dimensions | 4.72"L x 3.15"W x 0.79"H |
| Runtime | 1 hour |
| Frequency | 1 KHz |
| Manufacturer | Weewooday |
