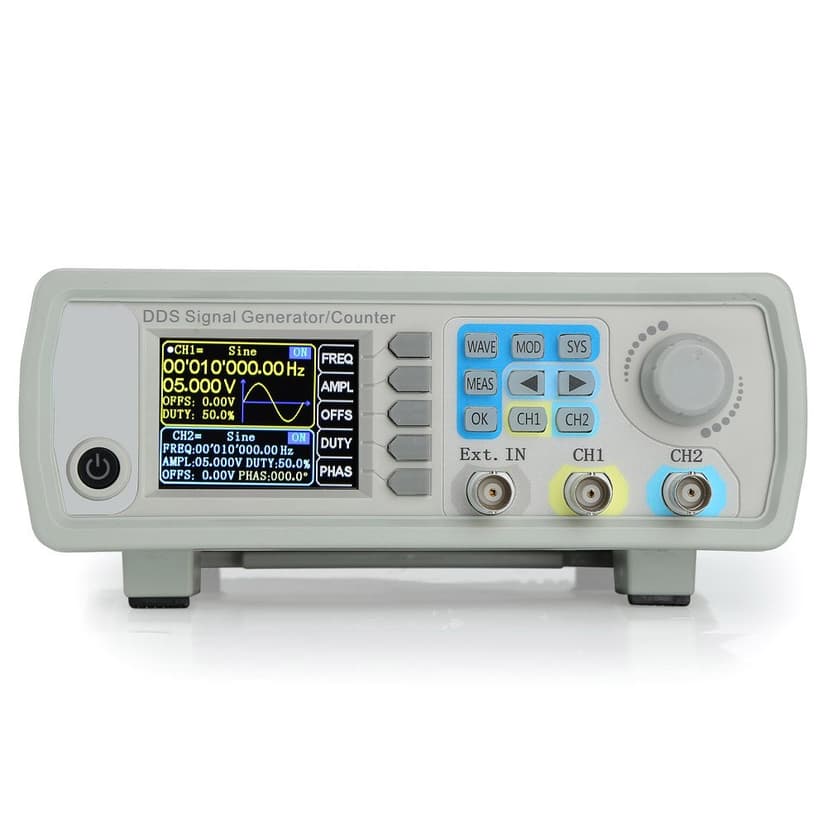

Koolertron Upgraded 15MHz DDS Signal Generator Counter,High Precision Dual-Channel Arbitrary Waveform Function Generator Frequency Meter 200MSa/s (15MHz)
942 ratings
Highlights
- Arbitrary Waveform Generator adopts large scale FPGA integrated circuit and high-speed MCU microprocessor. The internal circuit adopts the active crystal oscillator as the benchmark. So the signal stability is greatly strengthened.

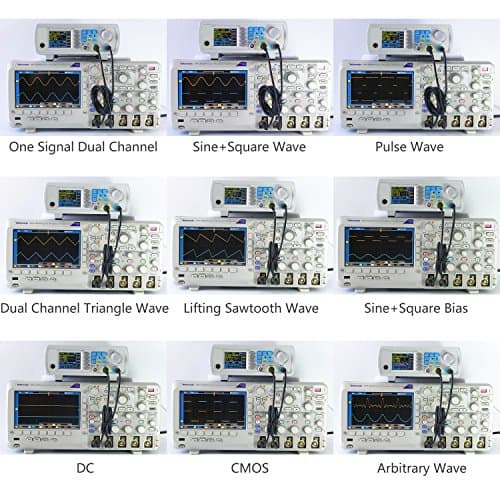

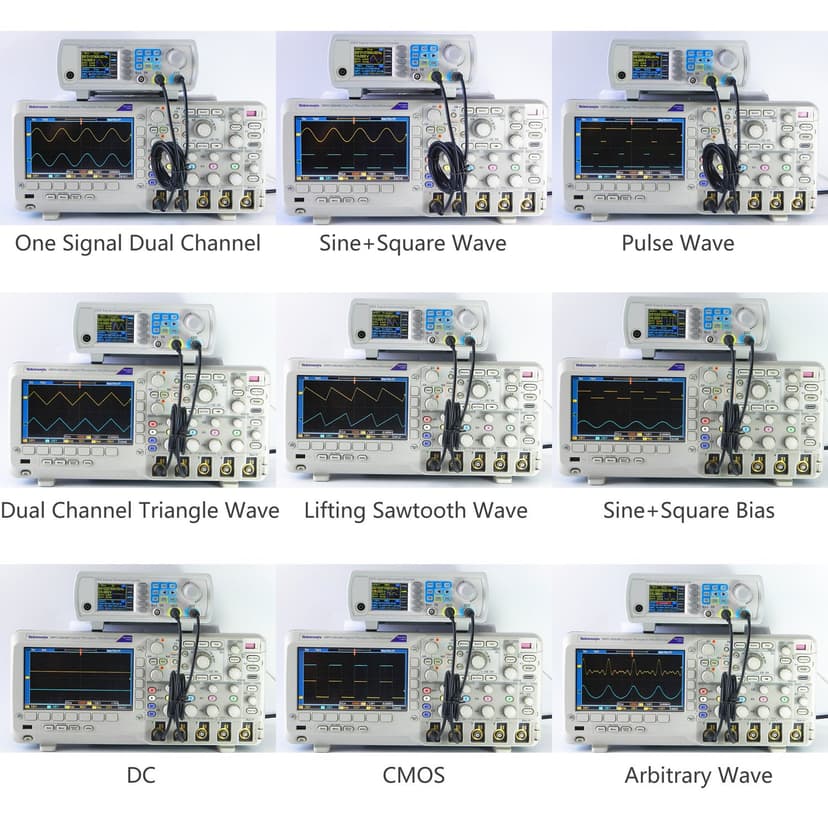

- Using Dual-channel DDS signal and TTL electric level output to generate precise, stable, low distortion output signal. includes Sine wave, Square wave, Triangle wave, Saw toothwave, Pulse wave, white noise, user-defined waveform etc. each channel can be independently set the parameters.
- With linear sweep(Max. up to 999.9s) and logarithmic frequency sweep functions.Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function.
- Storage feature: You can store 99 groups instrument state parameters set by the user, can be called up to Reproduce.The frequency output of Sine wave can be up to 15MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveform. Waveform Length of each one is 2048 and vertical resolution is 14 bits
- This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.
Description

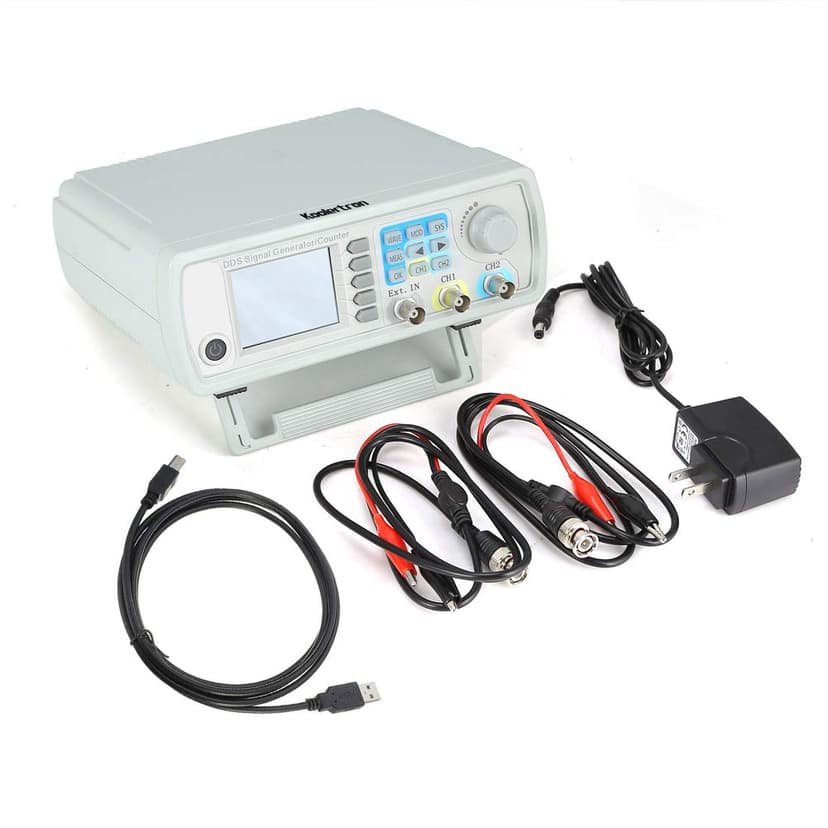

Product DescriptionAdvantage:High frequency precision up to 10-6 orders of magnitude.Full range of 0.01μHz frequency resolution.Minimum amplitude resolution can be up to 1mV.Duty cycle of each channel can be adjusted separately. Precision can be 0.1%.Frequency Characteristic:Normal Modes & Square & Triangle Wave: 0~15MHzSawtooth & Arbitrary & TTL Digital Signal Wave: 0~6MHzSquare rise time: ≤30nSFrequency accuracy: ±20ppm×10-6Frequency stability: ±1ppm×10-6/3hWaveform Characteristic:Waveform: Sine, Square, Triangle, Pulse (duty-cycle correction), Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.Output Characteristics:Amplitude resolution: 1mVAmplitude stability: ±0.5%/5 hAmplitude flatness: ±5%(<10MHz); ±10%(>10MHz)Frequency Meter Function:Frequency measurement range: 1Hz~100MHzMeasurement accuracy: Gate time continuously adjusted between 0.01S~10sCounter Function:Counting region: 0-4294967295Coupled mode: 2kinds Coupling modes, DC and ACCounting mode: Manual operationPackage Included:1 x DDS Signal Generator1 x USB Cable1 x Power Adapter2 x Q9 Cable

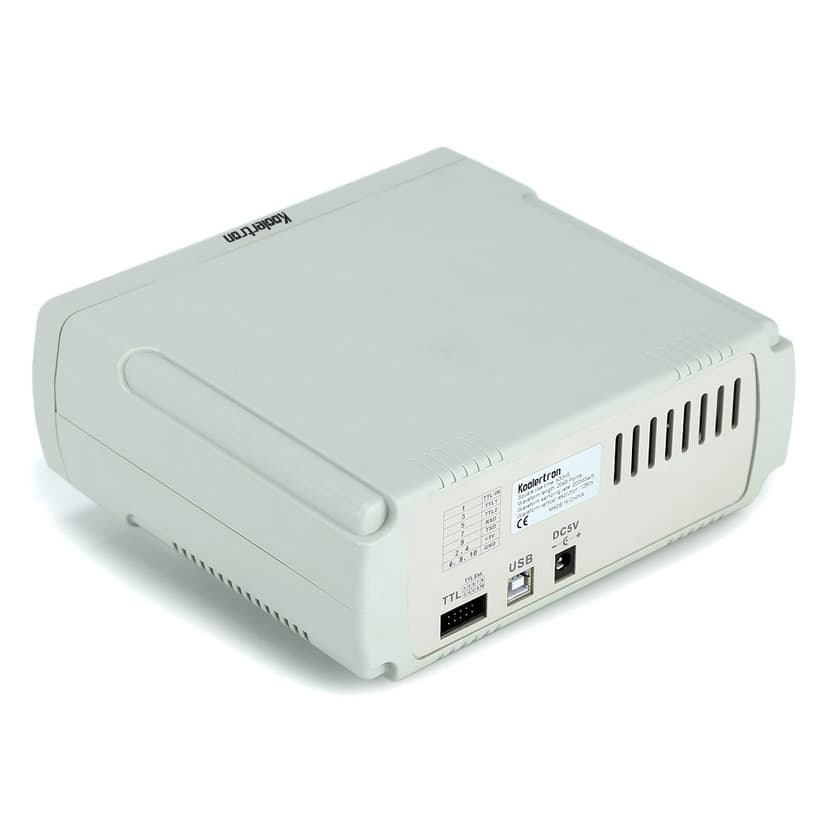

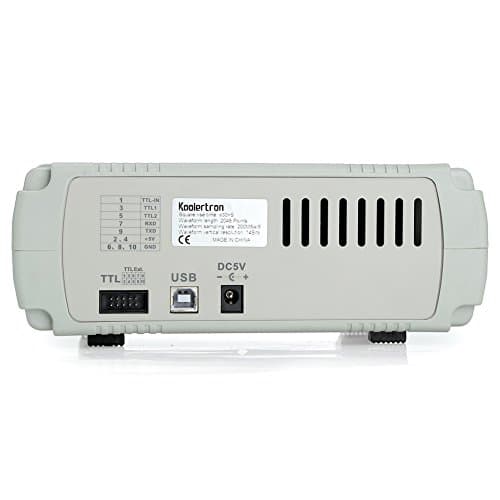

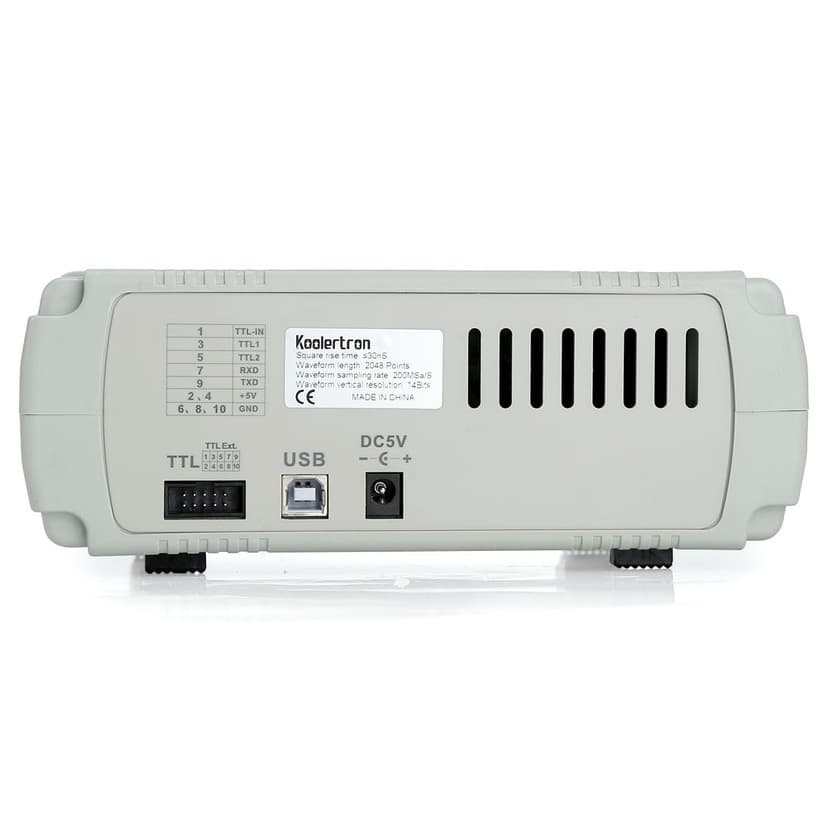

Photos
Product specs
| Specification | Details |
|---|---|
| Is Discontinued By Manufacturer | No |

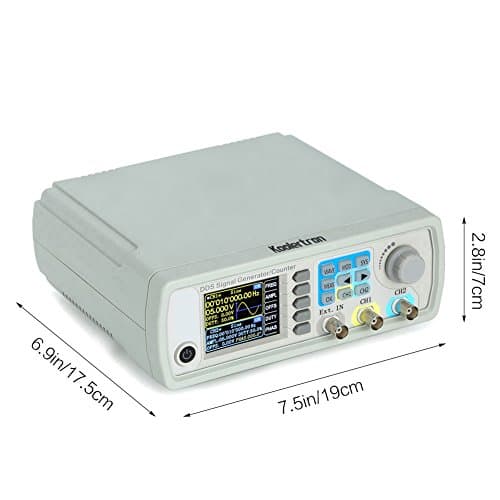

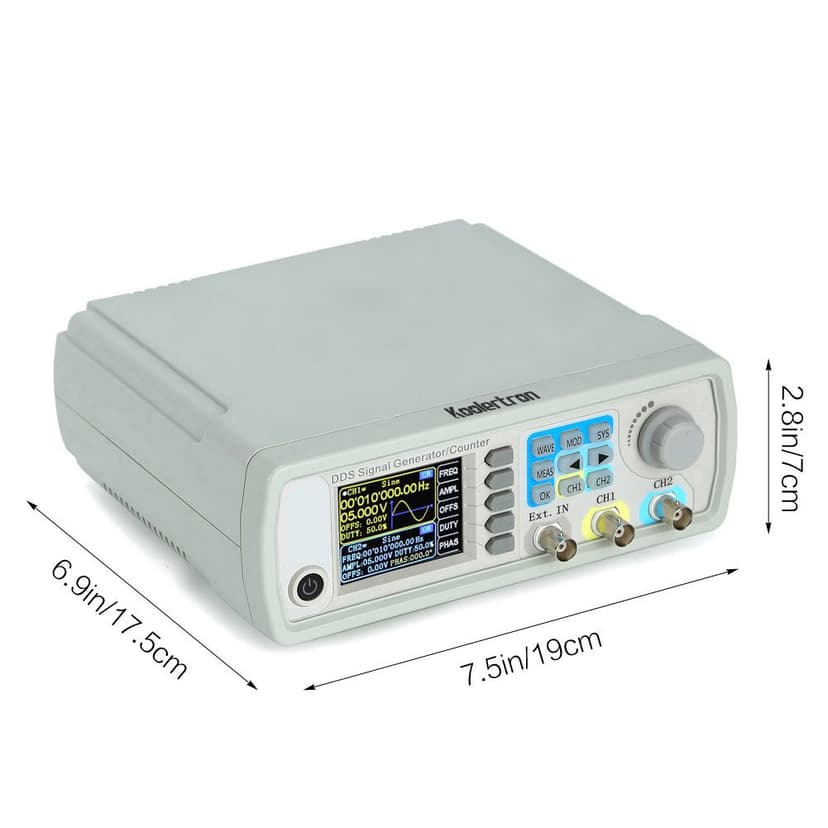

| Package Dimensions | 12.56 x 11.46 x 3.9 inches; 2.2 Pounds |
| Item model number | GH-CJDS66 |
| Date First Available | June 6, 2017 |
| Manufacturer | Koolertron |
| ASIN | B07211YWMK |
| Country of Origin | China |
