130794 Spindle 153535 Pulley Compatible with Craftsman Mower - Spindle Assembly with Pulley Compatible with Craftsman LT1000 LT2000 DYT4000 42" Deck Tractor, HU, Poulan Pro Riding Mower
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate I earn from qualifying purchases. Learn more ›
130794 Spindle 153535 Pulley Compatible with Craftsman Mower - Spindle Assembly with Pulley Compatible with Craftsman LT1000 LT2000 DYT4000 42" Deck Tractor, HU, Poulan Pro Riding Mower
793 ratings
Highlights
- The mandrel assembly with pulley is compatible with ①Craftsman LT1000, LT2000, LT4000, LTX1000, DYT4000, 917.274033 and 917 series 36", 38", 42" lawn tractor ②Poulan Pro PB1842LT, PB18542LT, PB19H42LT riding lawnmower ③Hus qvarna HU CT130, CTH150, LT130, LTH145, YT150, YTH130, YTH150 ride mower ④Others: Ryobi, AYP, Sears, Roper, Weedeater, Yardpro and Wizard mowers with compatible part numbers.
- Spindle replaces OEM part numbers: Fit for Craftsman/Poulan/Hus qvarna HU 128285, 130794, 133172, 137645, 532128285, 532130794, 532133172, 532137645, 539110158; Pulley replaces OEM part numbers: Fit for AYP 129861, 153535, 173436, 177865, 532153535, 532173436, 532177865. Please use the part number and description to see if the assembly will fit on.

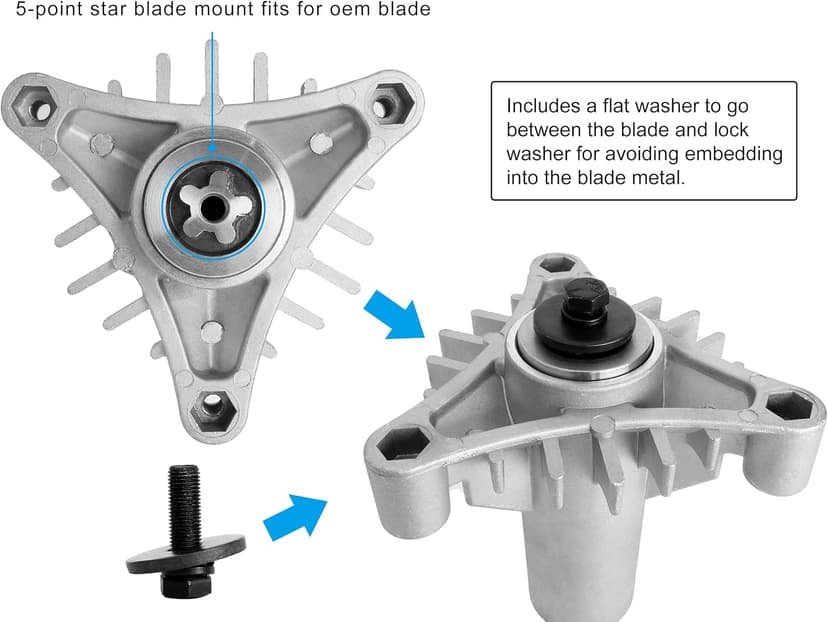

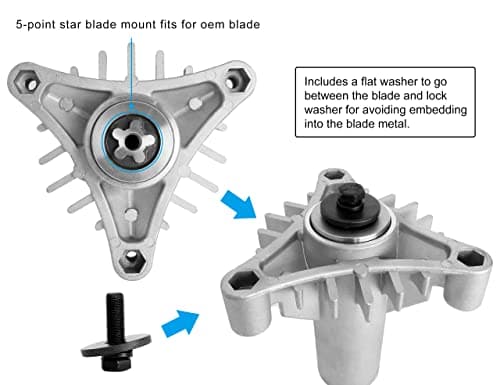

- 5-point star blade mount fits for OEM blade and washers provided help to secure the pulley and blade. Please double-check that if the part number of the pulley matches when the spindle fits.

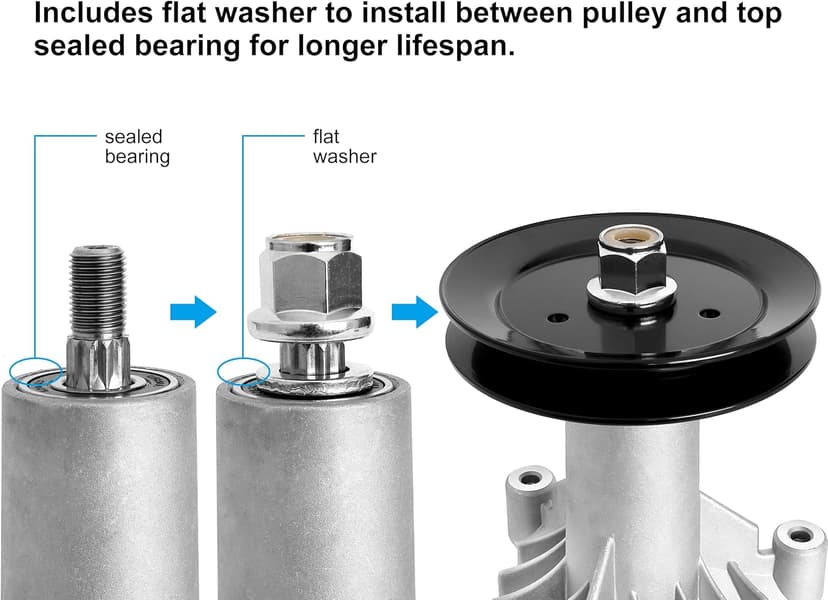

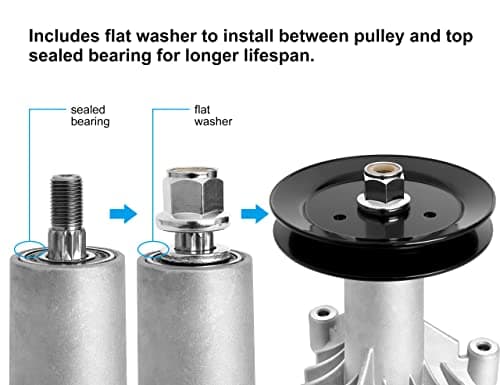

- Easy to install: 1. Remove the deck with pliers to pry off the cotter pins; 2. Remove the blade, three screws and the pulley nut using the wrench, now install your brand new mandrel assembly with pulley; 3. Secure the pulley, belt and blade. Also, remember that one of the flat washer is placed under the pulley and the lock washer is at the bottom of the blade bolt.

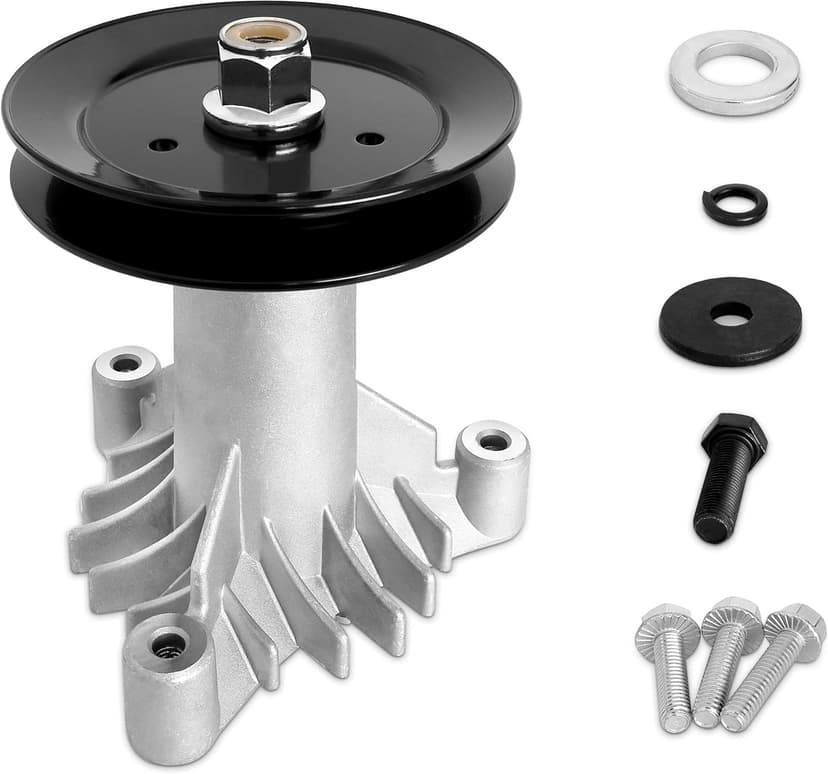

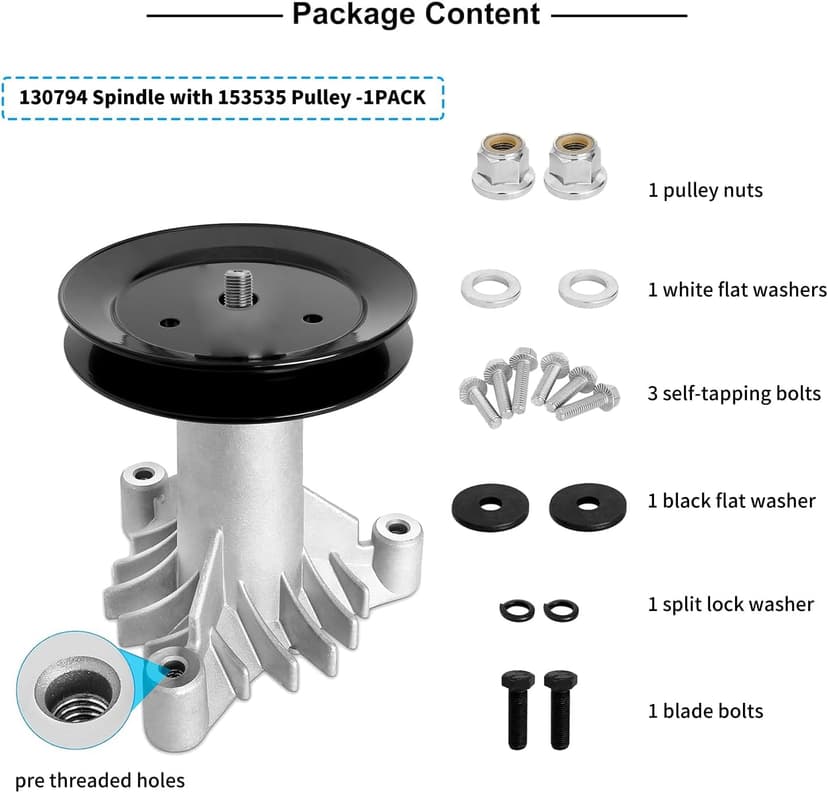

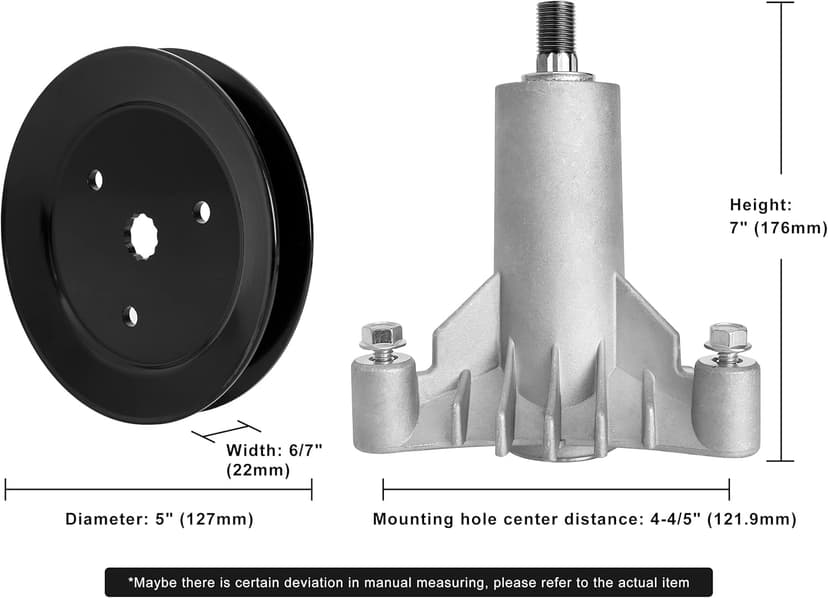

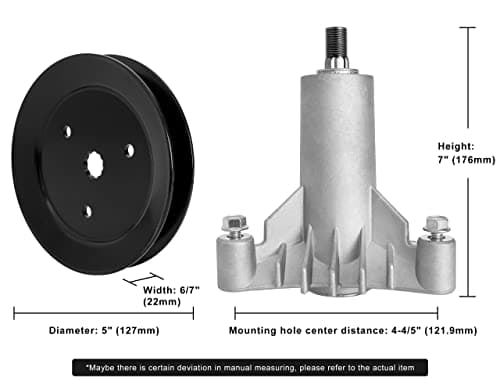

- Package includes: 1 spindle assembly with 1 housing (height 7", mounting hole center distance: 4 4/5" ), 1 pulley (diameter 5", width 6/7"), 1 shaft with sealed bearings and 5 point star blade mount; mounting hardware includes 3 self-tapping bolts for pre-threaded holes, 1 pulley nut, 1 blade bolt, 2 flat washers and 1 split lock washer.
Description
Greasing Mower Spindles This spindle is pre-greased. Note: it is NOT equipped with grease fitting. Greasing your mower spindle depends on the usage. The more you use it, the more grease it needs. If you are an average user, you need to grease your mower spindles at least once a month. This will lubricate the interior moving parts in the mower. Keeping the internal parts well lubricated extends the life of the mower. The amount of grease needed for your mower spindles also depends on how you use it. For personal mowing, it can be sufficient to grease them two times in a mowing season. If you are a commercial mower, you should grease the mower spindle daily. This is because you spend many hours using it and it might get destroyed easily if it doesn’t get enough lubrication.Keep in mind that mower spindles have large cavities that need enough lubrication. It would be best to grease the spindles until grease can be seen coming out of the weep hole at their base. Remember to change the oil when the lawn-mowing season is over. Changing oil is also crucial as it makes the mower last longer. Failing to change the oil leads to oil deposits settling on the engine. You might also want to add fresh gasoline and maintain the blade as part of the maintenance process.
Photos
Product specs
| Specification | Details |
|---|---|
| Product Dimensions | 7.48 x 6.3 x 11.02 inches |
| Item Weight | 3.96 pounds |
| Manufacturer | Fourtry |
| ASIN | B0B384BD6X |
| Country of Origin | China |
| Item model number | 128285, 130794, 133172 |
